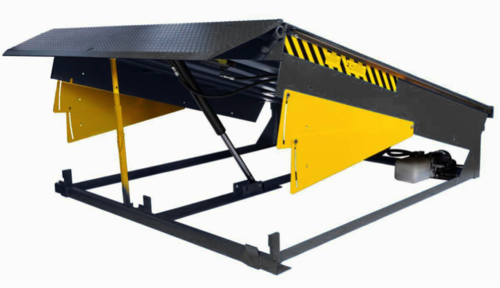

The electro hydraulic DLH dock levellers with hinged swing lip are designed and build to meet the demands of high-volume loading and unloading and provide the most durable performance with low lifetime cost of ownership.

The DHL dock leveller is operated with only one push button. By keeping the push button pressed, the platform will go up from its rest position, when the highest points is reached, the lip will swing out. When the push button is released, the platform and lip will descend automatically to the level of the vehicle bed.

Technical Specifications ‐ Dock Leveller – 6 / 9 Ton

Sr. No.	Description	Specifications
1	Capacity	6 / 9 Ton
2	Dock operation mode	Hydraulic
3	Lip operation mode	Hydraulic
4	Operation control	230V AC OPERATED
5	Loading platform height from road	1200 MM ( 4 FEET )
6	Travel above & below dock level	250 MM ABOVE & 150/200 MM BELOW
7	Platform Size (W x L)	2000 mm x 2500 mm
8	Lip size (W x L )	2200 x 400 mm
9	Shut Height	480 mm
10	Working length	2600 mm
11	Overall length	2000mm x 2500mm + Lip Length (400mm )
12	Maximum slope can be achieved	3 TO 4 DEGREE ( NEGATIVE )
13	Clear Pit dimensions (W x L x D)	(W) 2030mm x (L) 2520 mm x (D) 485 mm
14	Hydraulic power pack	1 HP, 3 PH
15	Driver type	Direct by electric Motor
16	Motor Ratings	1 H.P Motor
17	Pump design flow	1.6 CC / REV
18	Pump pressure	120 bar Operating 200 bar Max.
19	Pump Type	Gear
20	Volume of oil receiver	5 Lit
21	No Of Deck cylinder	1 / 2 No
22	Lip Cylinder	1 / 2 No
